Academic projects showcase
Academic projects showcase
Projects developed by undergrad students using sensors, neural networks, and microcontrollers. All in a closed-loop, low-power, and low-resource footprint decision-making system.

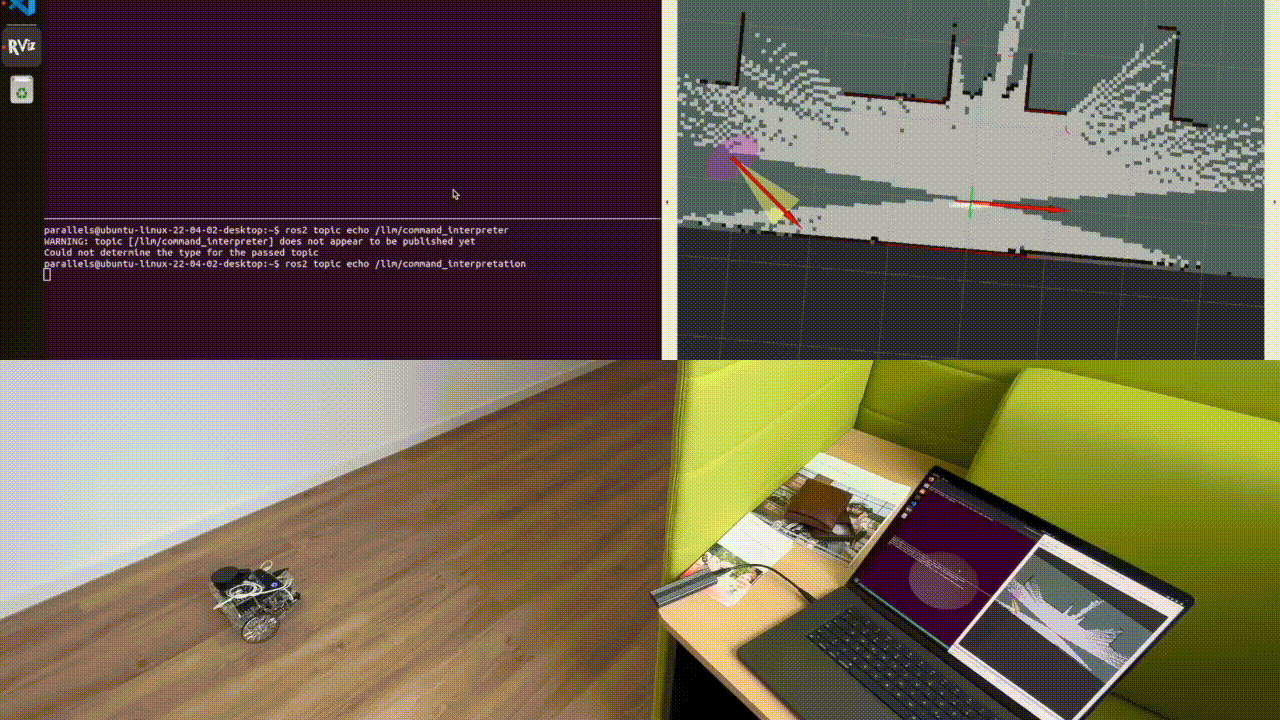

Embedded Perception-Language-Action Model for Robotics
Embedded Perception-Language-Action Model for Robotics
The goal of this project is to develop an Embedded Perception-Language-Action Model using ASR, LLM, and LiDAR for SLAM-based action planning and control in uncertain dynamic environments. The ROS 2 package for voice-controlled robot navigation and interaction includes voice feedback and environment awareness. The system utilises LiDAR (with the option of incorporating a camera at a later stage) for SLAM and world model construction, and receives motion instructions via voice commands. The voice feedback system utilises Text-to-Speech (TTS) technology. It employs a verification process to ascertain the feasibility of a requested action, as determined by the SLAM-based world model. If the action is deemed unfeasible, the system provides appropriate feedback to the user. Subsequently, the robot autonomously initiates navigation and driving commands.
Maximilian Werzinger - werzingerma89360@th-nuernberg.de
Christopher Witzl - witzlch88229@th-nuernberg.de
Felix Rittmaier - rittmaierfe88977@th-nuernberg.de

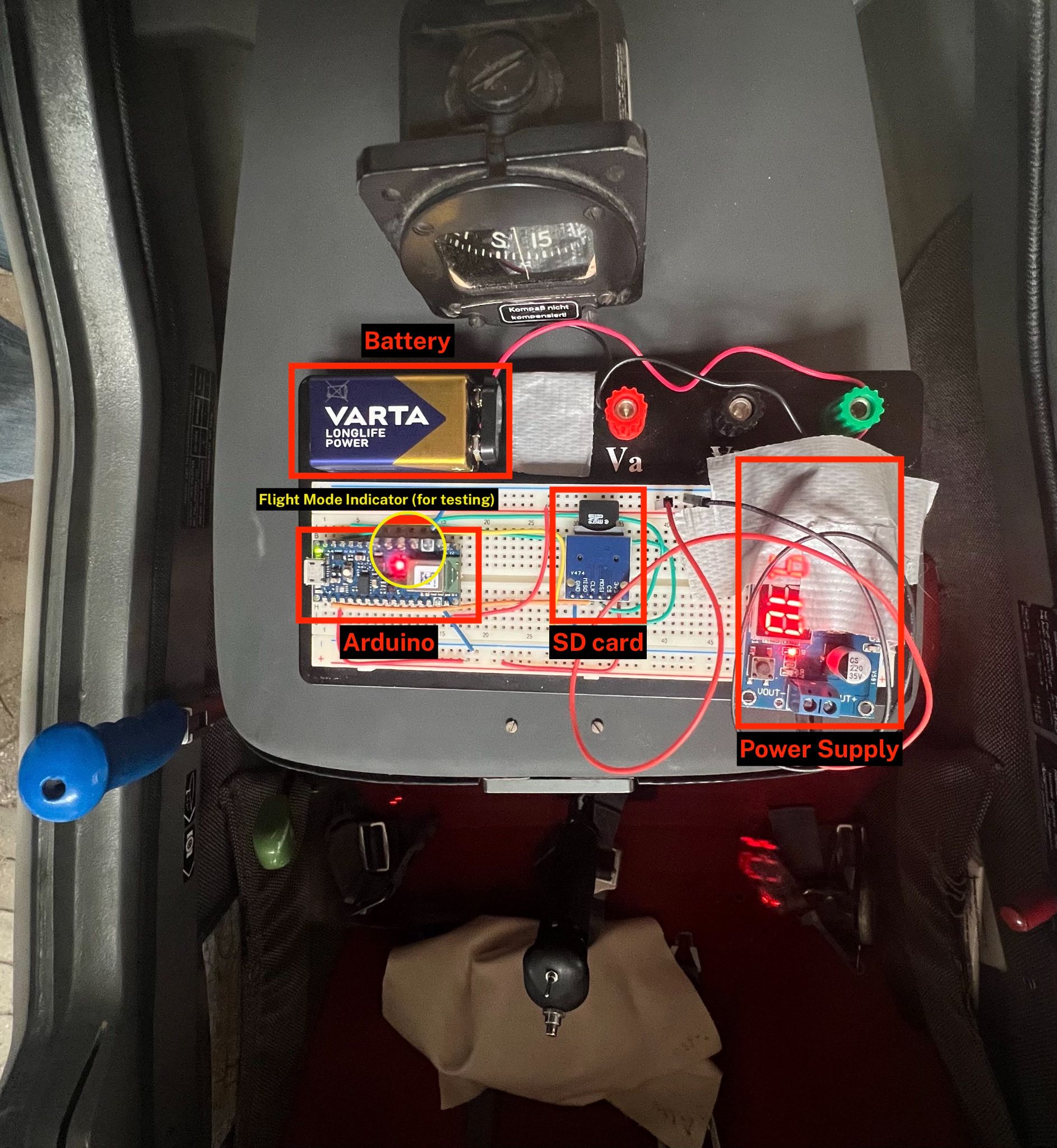

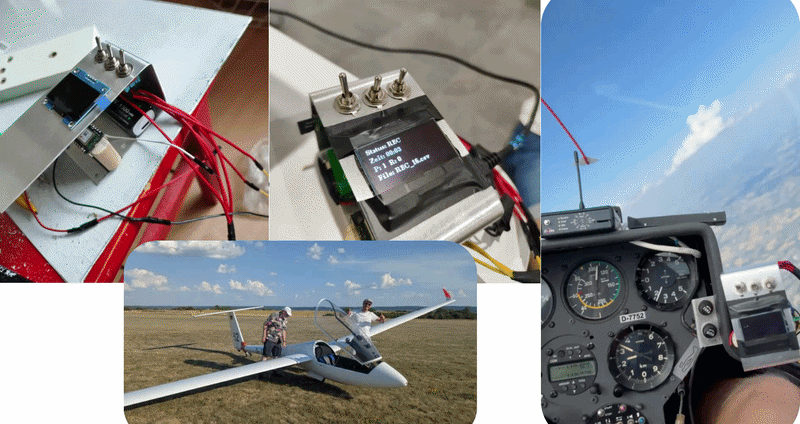

TinyML Flight Mode Detector
TinyML Flight Mode Detector

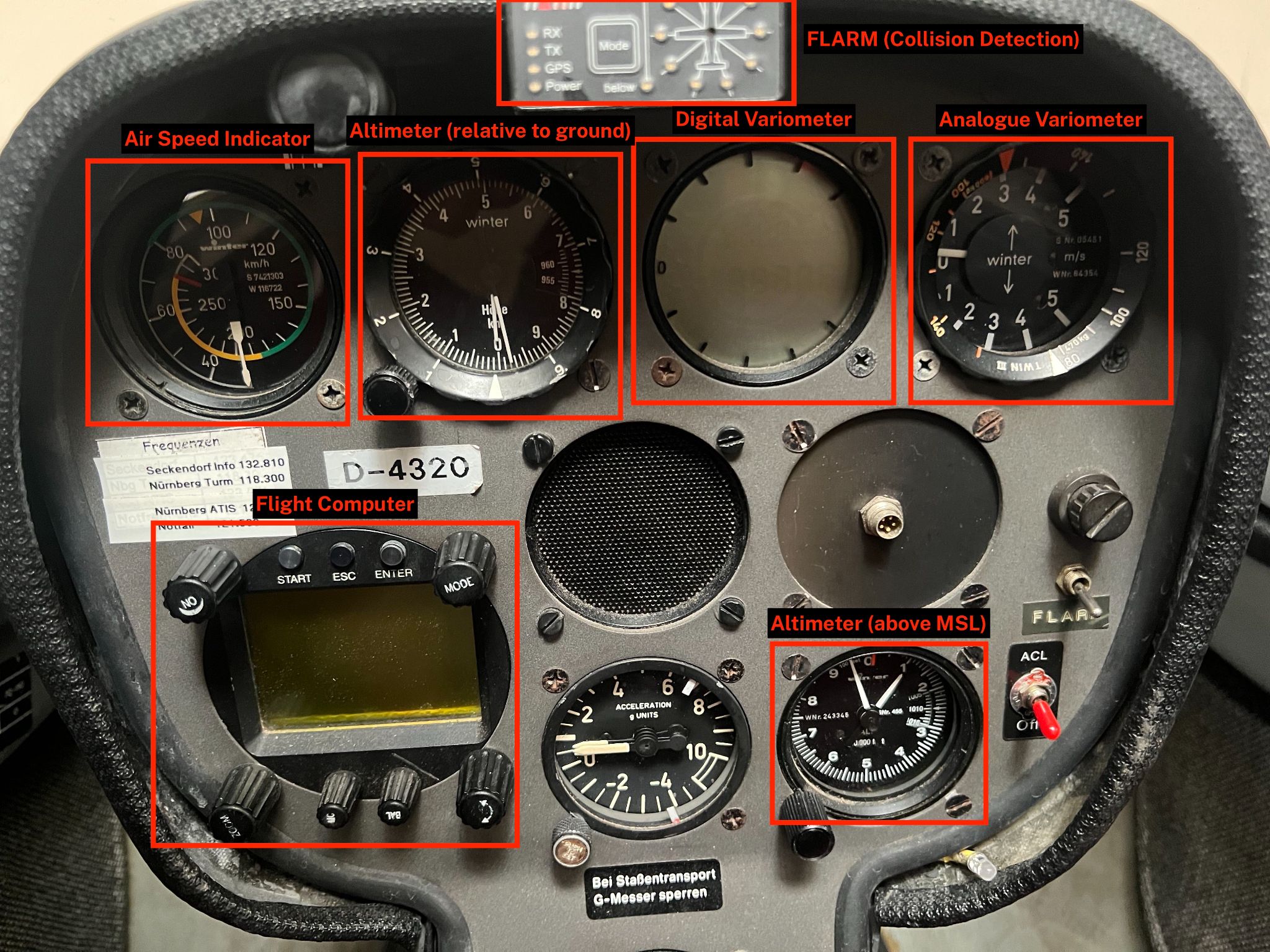

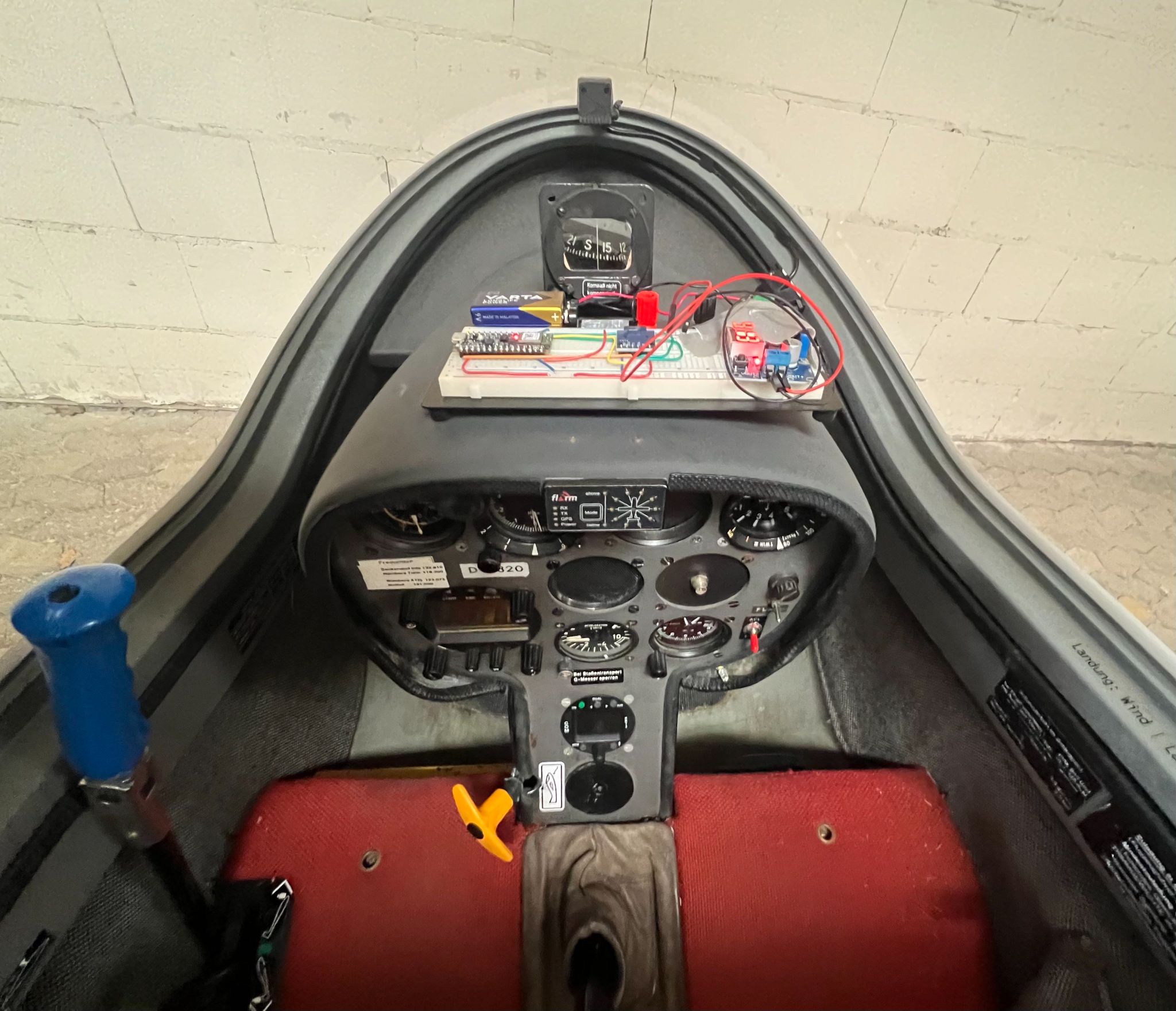

The goal of this project is to develop a microcontroller that can detect the different flight modes during the flight of a glider/sailplane. During the duration of one flight, the plane might be in one of the standard flight modes/phases: Pre take-off, Take-off, ..., Landing, Landed. The microcontroller should leverage a machine learning model that is trained to classify these flight modes by relying only on IMU data as well as the current air pressure. The IMU module measures acceleration and gyroscopic rotation in three axis whilst the pressure sensor measures the barometric pressure of the surrounding air (lower pressure means higher altitude). The project used an Arduino Nano 33 BLE Sense with a LSM9DS1 (IMU sensor), and a LPS22HB (barometer).
Denis Engelhardt engelhardtde103270@th-nuernberg.de
Nils Weber weberni76153@th-nuernberg.de
Public Transport Utilisation via Minimally Invasive Sensing Systems
Public Transport Utilisation via Minimally Invasive Sensing Systems
The goal of this project is to develop a microcontroller that can detect the different flight modes during the flight of a glider/sailplane. During the duration of one flight, the plane might be in one of the standard flight modes/phases: Pre take-off, Take-off, ..., Landing, Landed. The microcontroller should leverage a machine learning model that is trained to classify these flight modes by relying only on IMU data as well as the current air pressure. The IMU module measures acceleration and gyroscopic rotation in three axis whilst the pressure sensor measures the barometric pressure of the surrounding air (lower pressure means higher altitude). The project used an Arduino Nano 33 BLE Sense with a LSM9DS1 (IMU sensor), and a LPS22HB (barometer).
Denis Engelhardt engelhardtde103270@th-nuernberg.de
Nils Weber weberni76153@th-nuernberg.de

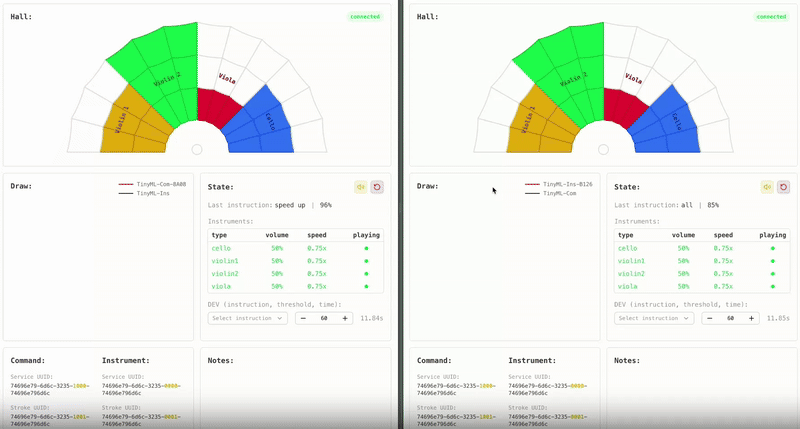

Conductor ML
Conductor ML

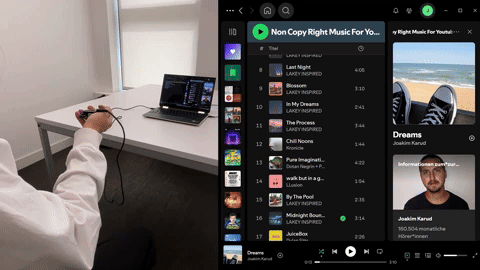

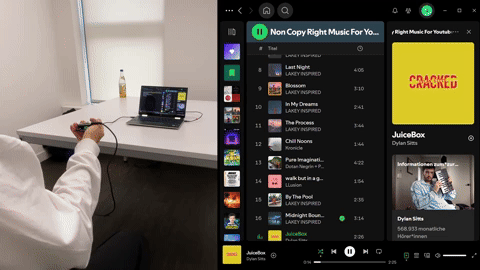

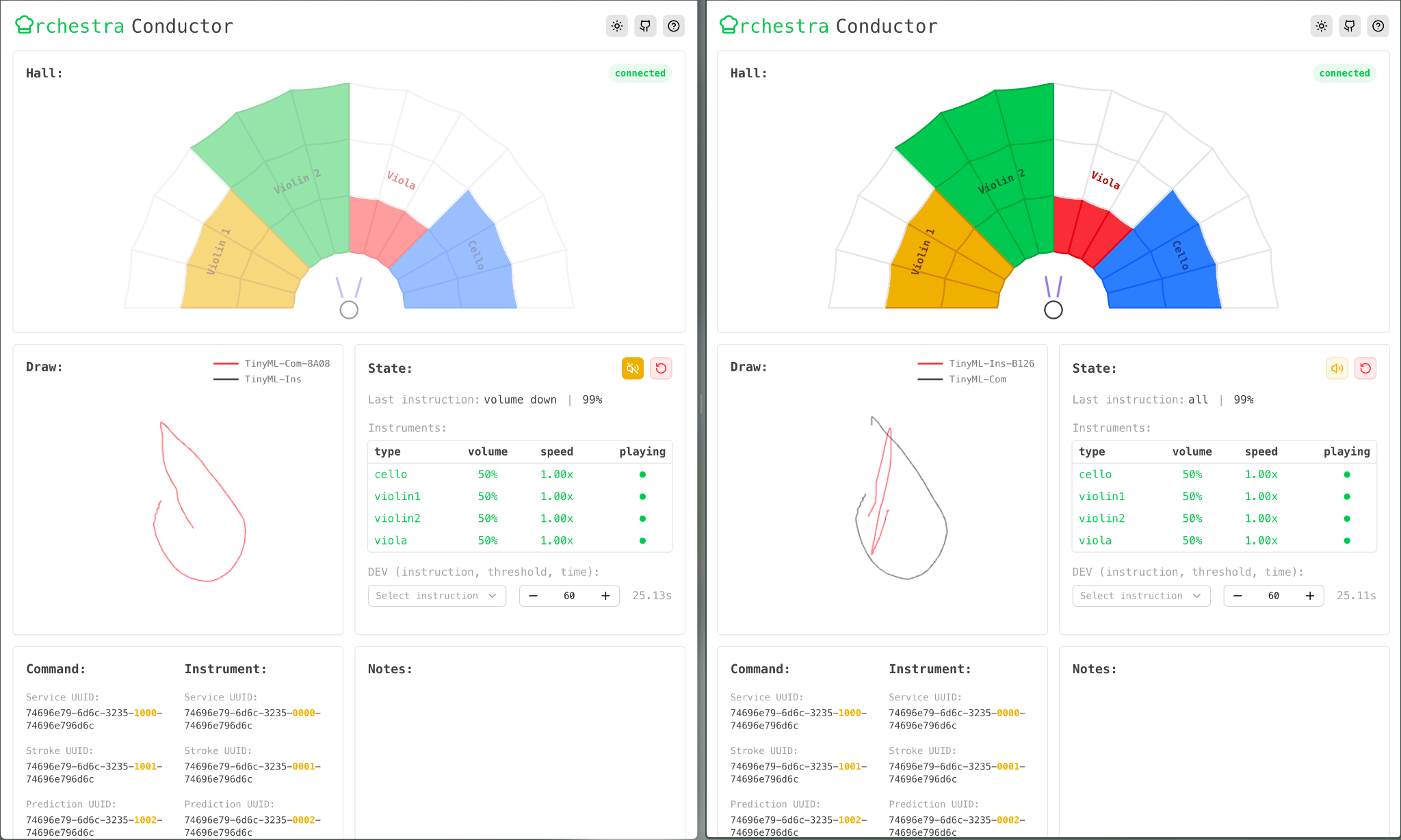

The core idea behind ConductorML is to use the onboard IMU (accelerometer and gyroscope) of the Arduino Nano 33 BLE to recognise hand gestures performed by the user. The project draws inspiration from and builds upon the Magic Wand repository by Peter Warden.

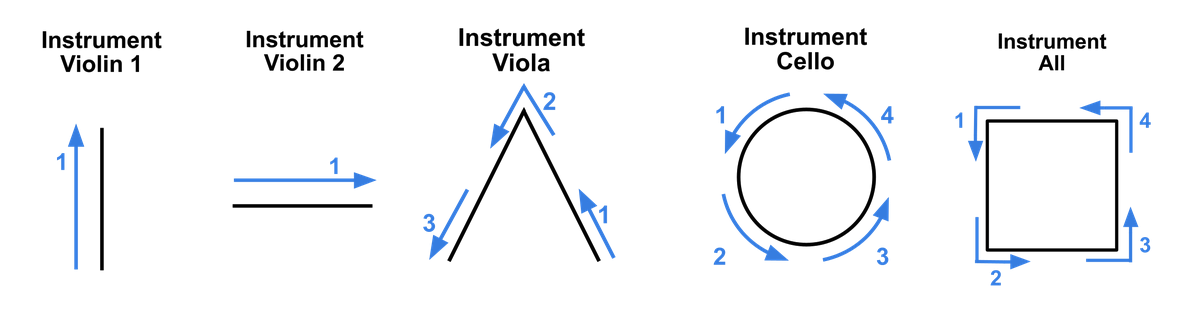

Instead of using raw accelerometer and gyroscope data directly for gesture classification, the system estimates the device’s orientation by integrating gyroscope data over time. It then tracks orientation changes to approximate gesture movement. Using recent motion history, a 2D stroke representation of the gesture is extracted and rasterised into an image.
These 2D images are then classified into gesture categories by a small convolutional neural network, implemented using TensorFlow Lite for Microcontrollers. The model runs directly on the Arduino Nano 33 BLE’s onboard neural processing unit, enabling efficient, real-time inference on embedded hardware. The classification result is transmitted to a central computer and displayed in a custom-built web interface. This interface not only visualises the recognised gestures but also maps them to playback triggers and volume changes for different sections of the digital orchestra—enabling intuitive, real-time control through gesture alone.
Eleonora Schubert, schubertel75720@th-nuernberg.de
Kristoph Kolert, kolertkr103269@th-nuernberg.de
Tan Phat Nguyen, nguyenta100556@th-nuernberg.de
Robin Feldmann, feldmannro80685@th-nuernberg.de

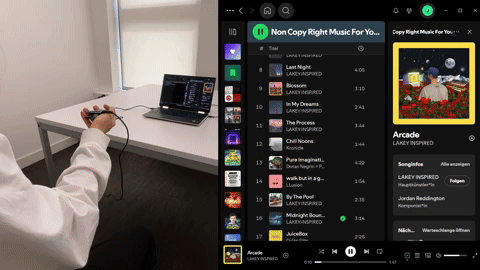

SpotiMotion - Inertial motion controller for Spotify
SpotiMotion - Inertial motion controller for Spotify
Embedded neural network algorithm design for inertial motion understanding and closed-loop control. SpotiMotion is a project that allows interaction with Spotify using gesture recognition with TinyML and an Arduino Nano 33 BLE board.
A machine learning model was trained using EdgeImpulse to recognize gestures from the Arduino. The gestures are recognized using the accelerometer and gyroscope sensors from the board. The detected gesture is then sent to a connected computer running a Python script that controls Spotify (using the SpotiPy library) over their API.
Lea Schaab: schaable79981@th-nuernberg.de
Timo Maußner: maussnerti75065@th-nuernberg.de
Jonas Reif: reifjo96249@th-nuernberg.de

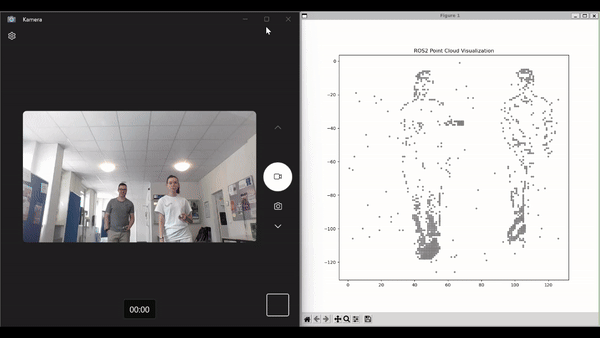

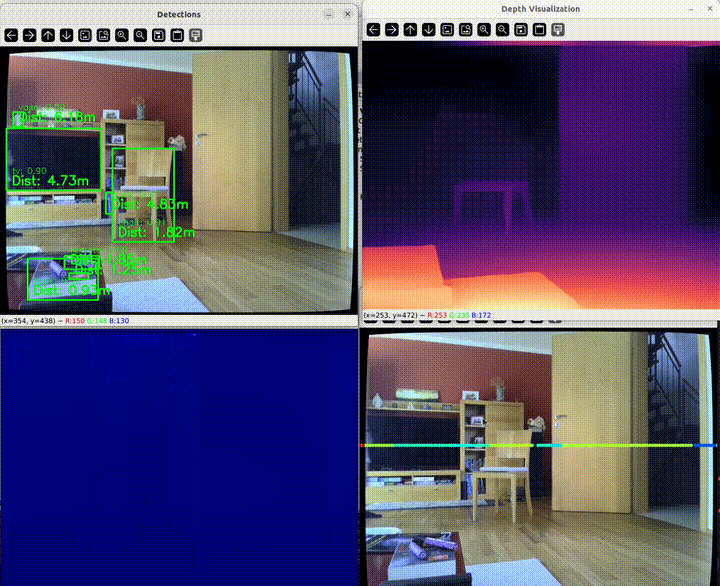

Camera-LiDAR fusion for embedded depth estimation
Camera-LiDAR fusion for embedded depth estimation
Embedded neural network algorithm design for LiDAR and CMOS camera fusion embedded on a mobile robot platform—a tool to enhance planning and kinematic control of wheeled mobile robots.
The project uses 2D lidar or 2D lidar depth data with camera images to generate accurate depth information. This is done using a depth estimation model (such as MiDAS or Depth-Anything V2), which can (more or less) estimate the depth or relative depth between objects in an image. These estimates are then calibrated with the lidar data to obtain more accurate depth information from the image.
The project uses ROS2 to process the sensor data and for communication between the individual program parts, as well as Python code to fuse the generated depth estimates, the lidar and the camera. The project's goal is to accurately estimate 3D distance data even when no 3D sensors are present, thus making expensive 3D lidar systems redundant in certain applications.
Maximilian Werzinger: max.werzinger@franken-online.org
Christopher Witzl: christopher.witzl@gmx.de
Event-based camera-LiDAR fusion for clustering-based depth estimation
Event-based camera-LiDAR fusion for clustering-based depth estimation
This project addresses the challenge of estimating depth using a single DVS (Dynamic Vision Sensor) camera and a 2D LiDAR. While DVS cameras capture changes in light rather than full images, they lack native depth information.
Most existing solutions rely on two DVS cameras for stereo depth estimation. Still, this project introduces a more cost-effective approach by using a 2D LiDAR instead, eliminating the need for expensive 3D LiDAR systems.
Built using ROS2 for communication and data processing, the system can run on various platforms, including wheeled robots with Jetson Nano or similar hardware.
Since 2D LiDAR measures depth in a single plane, a custom clustering algorithm was developed to estimate the depth of objects outside this plane, such as a person's arms.
The fusion algorithm aligns the LiDAR's measurements with dynamic events from the DVS, creating a unified point cloud, that can be visualized in real time.
This approach enhances depth perception for robotics and other applications while maintaining affordability.
Our E-Mail addresses:
Annika Igl: aiglgg@web.de
Timo Kapellner: timo.kapellner@gmail.com
Embedded inertial data fusion neural network for gamepad development
Embedded inertial data fusion neural network for gamepad development
Embedded neural network algorithm design for fusing and processing inertial data on a TinyML Arduino Nano BLE board. Motion processing was used to control a game.
Philipp Kremling: kremlingph95027@th-nuernberg.de
Igor Bodyagin: bodyaginig67371@th-nuernberg.de
PlantControlling - Optimizing plant growth with Embedded Fuzzy Logic Control
PlantControlling - Optimizing plant growth with Embedded Fuzzy Logic Control

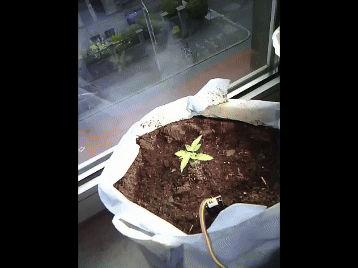

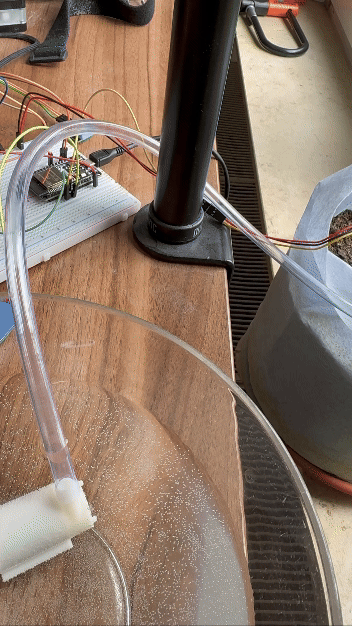

Embedded fuzzy logic controller design for fusing and processing humidity and light data for controlling a water pump on a TinyML Arduino Nano BLE board.
Laurin Müller muellerla89125@th-nuernberg.de
Marco Tong tongma89472@th-nuernberg.de
SPICEnet Neural Network Porting on iOS
SPICEnet Neural Network Porting on iOS

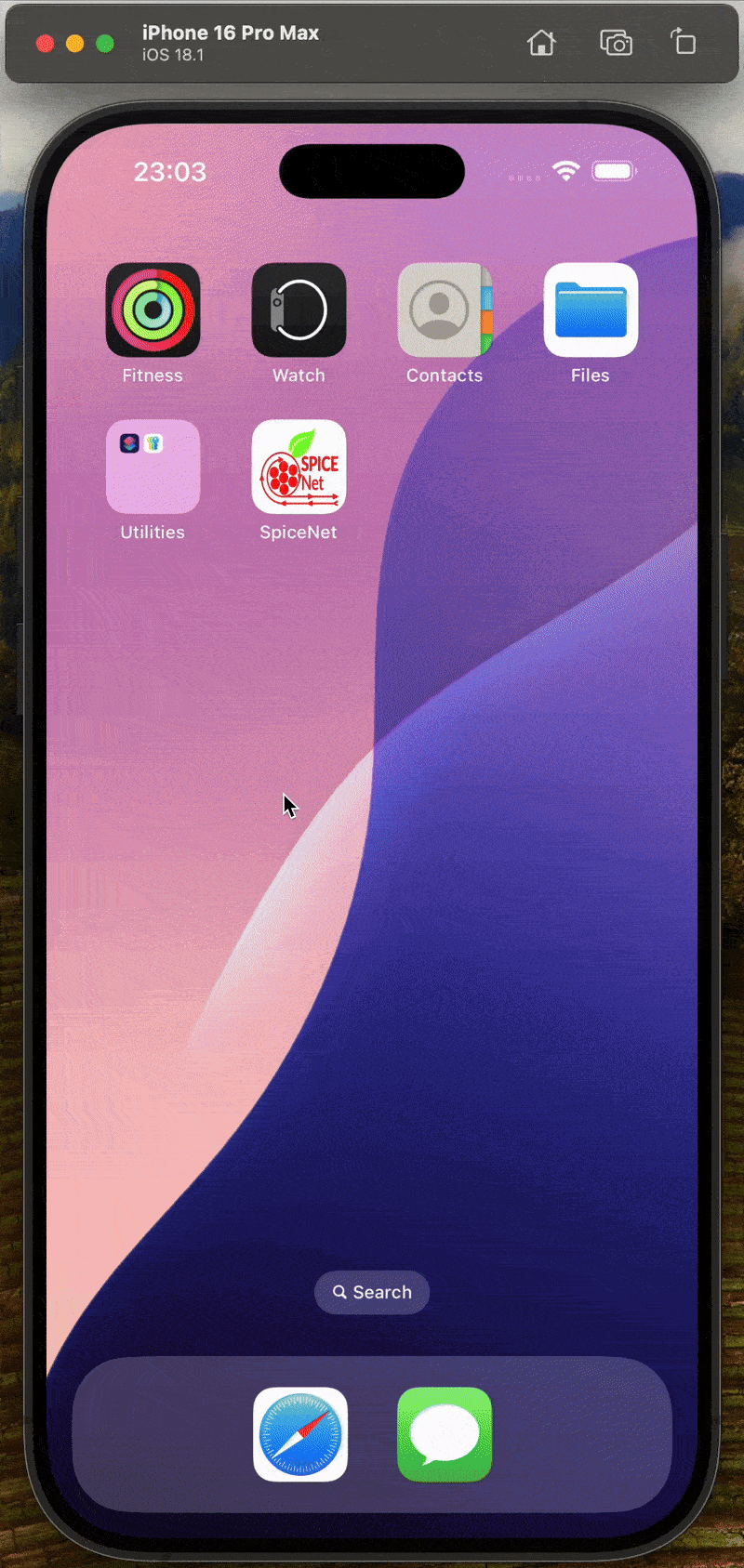

The project focused on porting an open-source neural network called SPICEnet to a mobile setup. The Sensorimotor Processing, Intelligence, and Control at the Edge Network is a novel, lightweight neural network designed for sensor fusion and control, inspired by biological neural computation mechanisms. The project aimed to develop a mobile demonstrator codebase with a graphical user interface (GUI) that allows for extensive network parameterisation, selection of input sources, and visualization of network elements. The application was designed to be portable across different operating systems, specifically Android and iOS.
Omar Ashour omar.ashour963@gmail.com
Spikeball Camera-based Detection and Understanding
Spikeball Camera-based Detection and Understanding

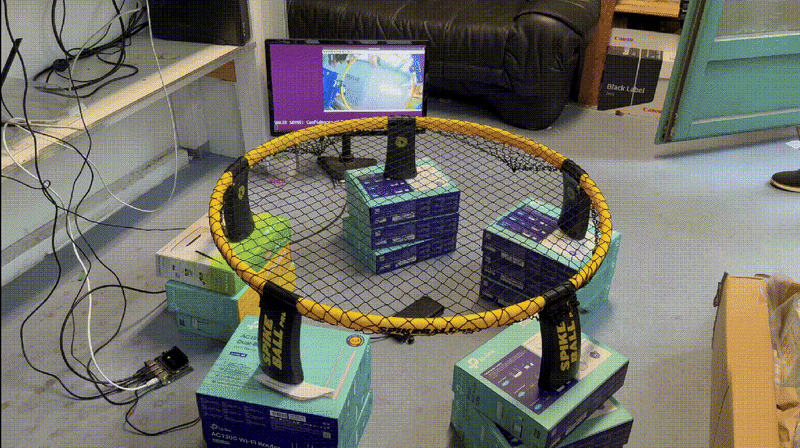

The project aims to track the ball in a roundnet game using ML-supported object recognition. More precisely, the goal is to determine whether the ball bounces off the net at the permitted angle. Two approaches were trialled for this: YOLOv8 and FOMO (Feature Optimised Mobile Object detection) from Edge Impulse. For the deployment, the entire system was run on an NVIDIA Jetson Nano. The aim was to bundle all processing steps - from camera integration to classification - on the device and make them executable in real-time.
Michael Harter hartermi98624@th-nuernberg.de
Laurin Kerntke kerntkela84836@th-nuernberg.de
Jan Staubringer staubringerja98627@th-nuernberg.de

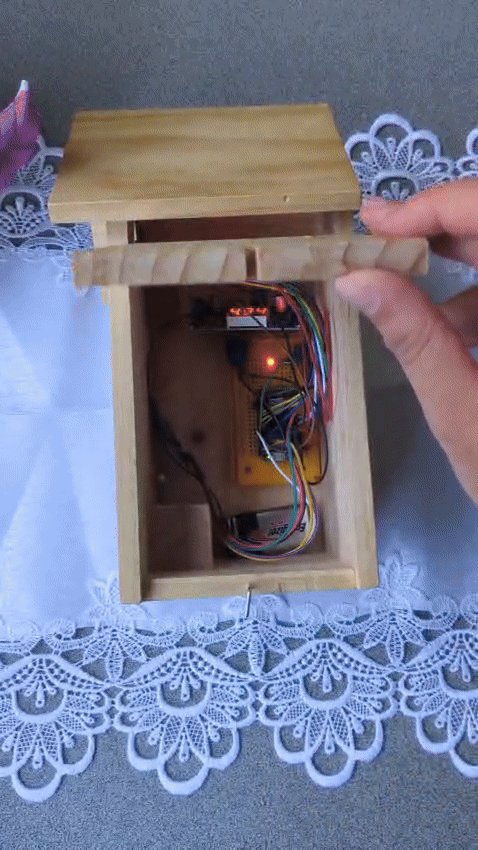

Embedded Bee Tracking for Plants
Embedded Bee Tracking for Plants
The goal of Bee Tracking for Plants is to track and count bees visiting a plant using TinyML on an Arduino Nano 33 BLE Sense with an OV7675 camera module. The neural network running on the TinyML board can distinguish between flowers/plants and bees/insects, and count the detected bees/insects. The deployment is weather-resistant housing for outdoors and uses a colour that is neutral for bees. It has a reliable power source for extended operation and data storage for detection counts and logging.
Jonathan Pohl, pohljo85440@th-nuernberg.de
Laura Diolosa diolosala85070@th-nuernberg.de
Inertial Pong Game
Inertial Pong Game

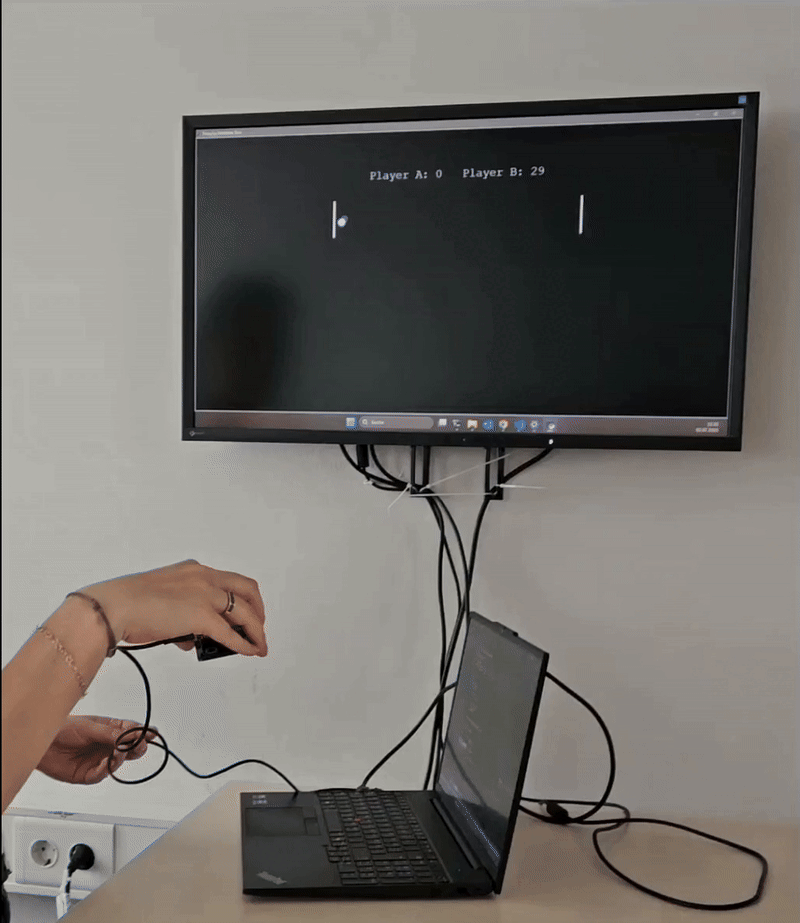

This project combines a classic Pong game with modern embedded machine learning (TinyML). The goal is to control a Pong game not with a keyboard, but with movements detected by an Arduino Nano 33 BLE Sense board using motion sensors (acceleration, gyroscope, magnetometer).
Beatrice Tichy tichybe71463@th-nuernberg.de
Leonhard Haselbek haselbekle100200@th-nuernberg.de

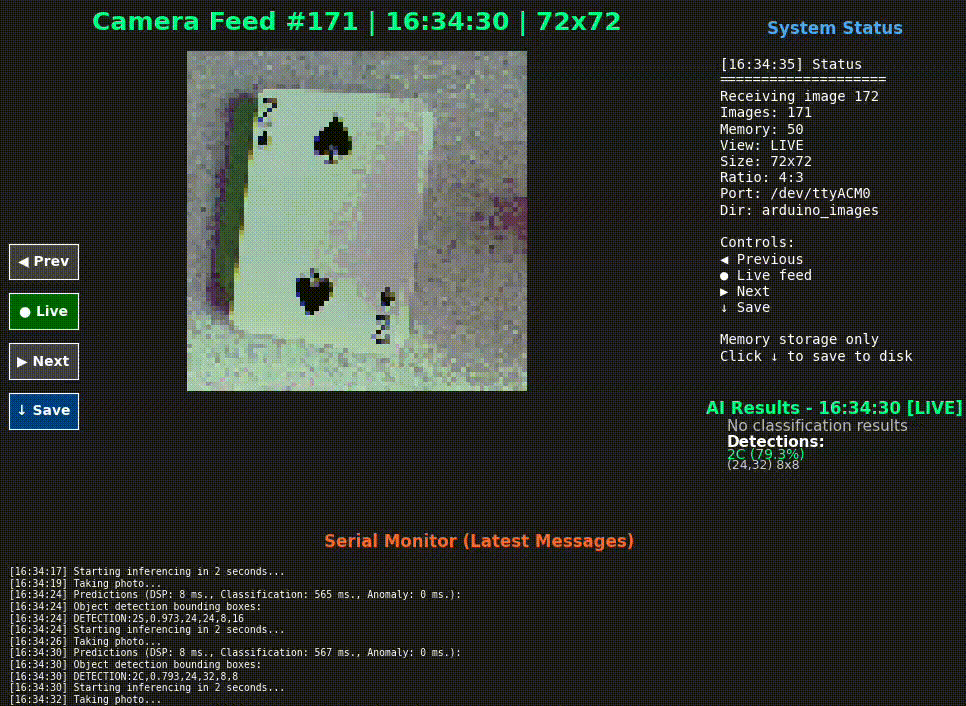

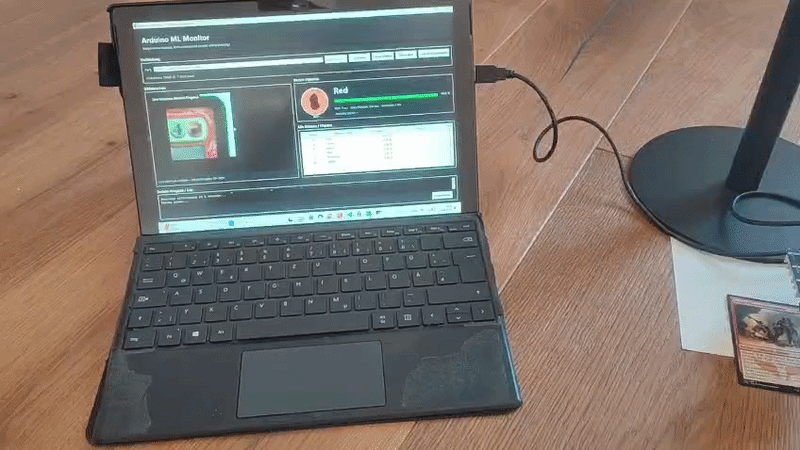

Embedded Playing Cards Detector
Embedded Playing Cards Detector
This project implements an AI-powered playing card classification on an Arduino Nano 33 BLE Sense Lite microcontroller and an OV7675 Camera Module. For the training process, the project used the Edge Impulse platform with an object detection pipeline.
Christoph Nickel nickelch84657@th-nuernberg.de
André Fürch fuerchan84463@th-nuernberg.de

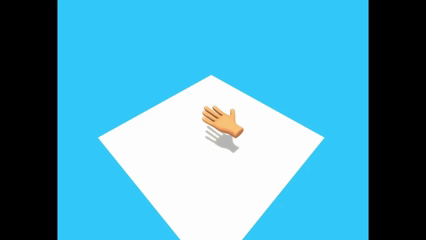

Inertial and Biosignals Fusion for VR Simulations
Inertial and Biosignals Fusion for VR Simulations

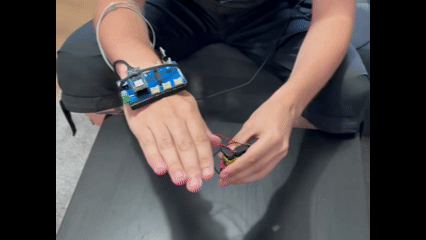

This project implemented a data fusion algorithm, based on the Madgwick filter, for IMU data of an Arduino BLE 33 with the data of an EMG electrode set in order to improve hand movement understanding. Such technologies could, for example, be used in VR and robotic tele-operation scenarios.
Eric Beers beerser92280@th-nuernberg.de
Cedric Miss missce92375@th-nuernberg.de

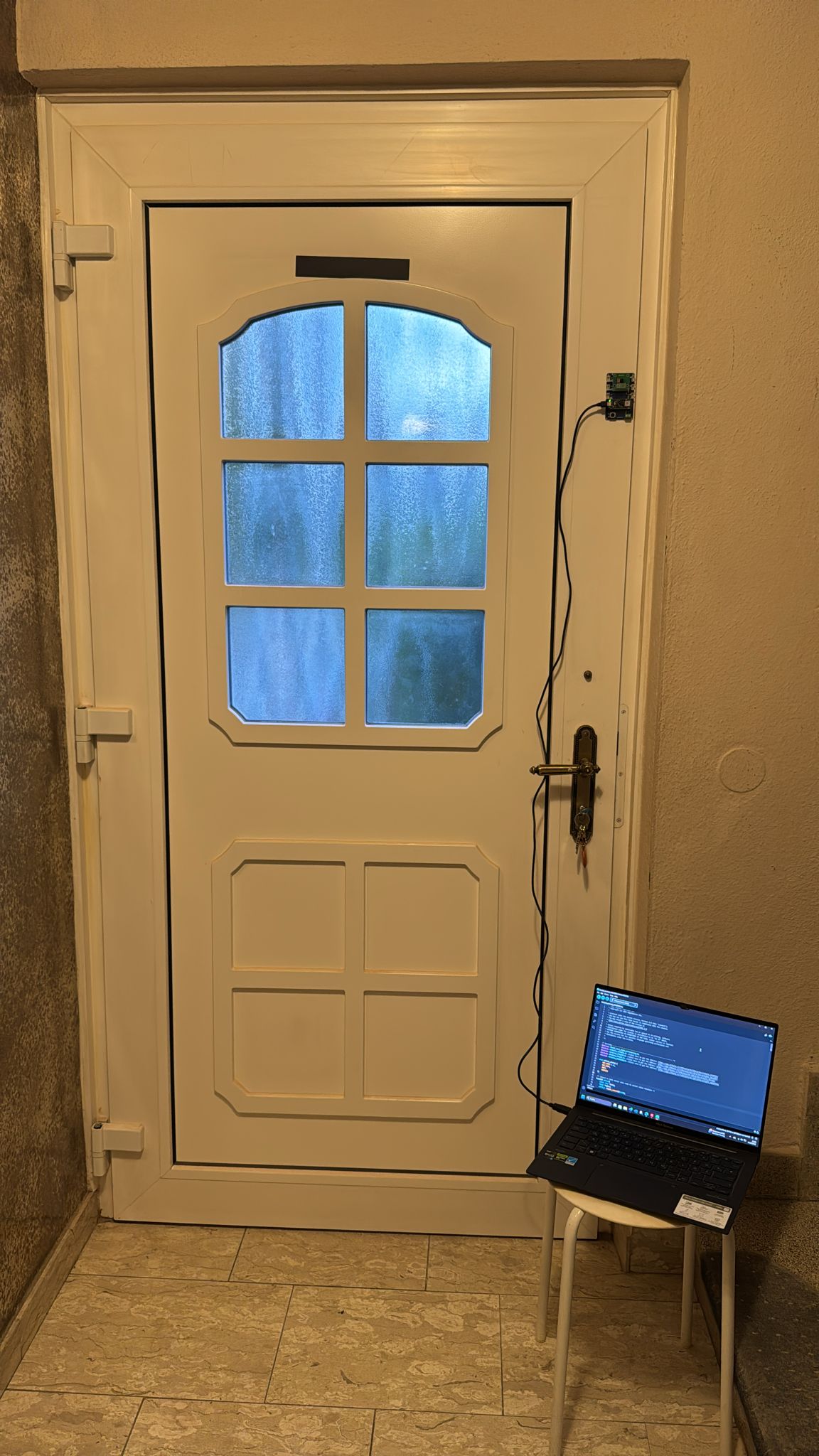

Classification of Door Closure States Using TinyML
Classification of Door Closure States Using TinyML

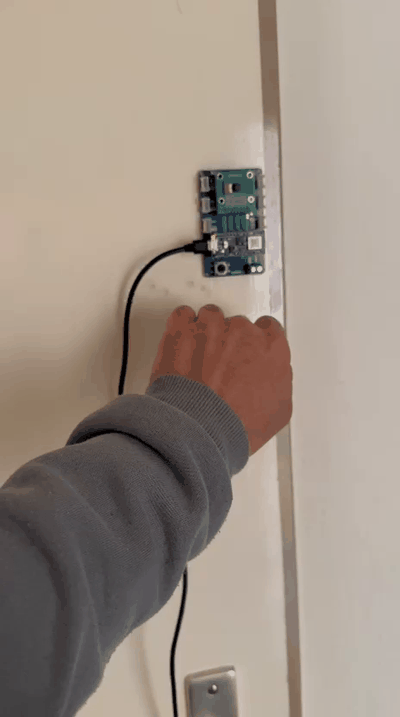

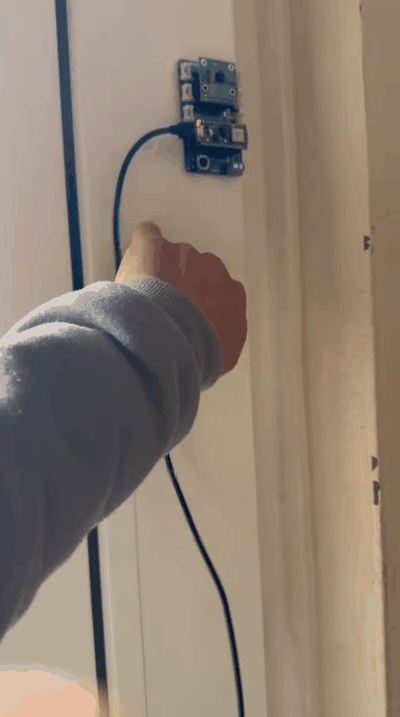

This project presents a TinyML-based system for classifying door closure states using vibration data collected by a microcontroller. The primary objective was to accurately detect and distinguish between different door actions, such as “door open” and “door closed”, by training a neural network directly on embedded hardware. The initial objective was to detect not only basic door states but also the precise position of the lock cylinder, which could be beneficial for firefighting operations.
Peter Filipp, filipppe78848@th-nuernberg.de
Yannick Kern, kernya84822@th-nuernberg.de
Lukas Wißmeyer, wissmeyerlu80194@th-nuernberg.de
Burak Toptas, toptasbu84460@th-nuernberg.de
